防爆直流伺服一体机：防爆伺服驱动一体机是一种专为易燃易爆环境设计的集成式伺服控制系统，将伺服驱动器、电机及防爆结构整合为一体，适用于石油、化工、矿业等高风险场景。
电机型号
| 电机型号 | L(mm) |
| 90ST-J02430-EX-48V-YTJ | 201.5 |
| 90ST-J03330-EX-48V-YTJ | 221.5 |

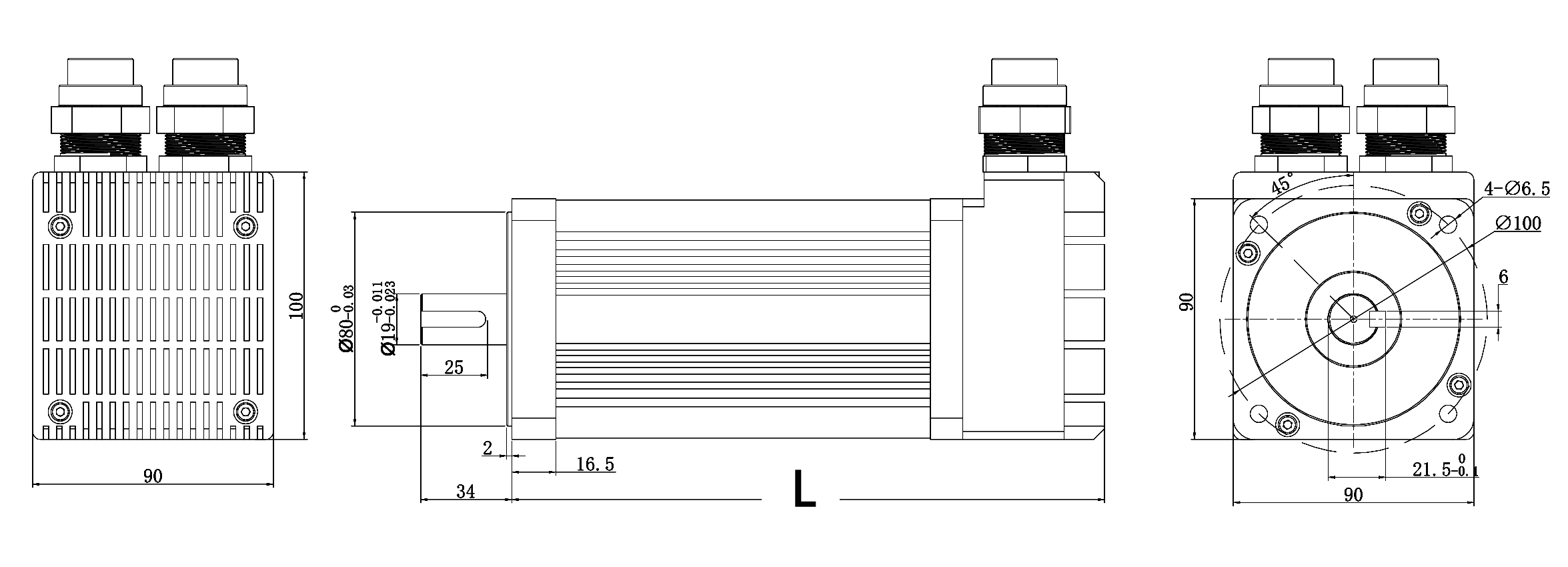

电机尺寸图
电机参数表
| 电机型号：90ST-J02430-EX-48V-YTJ |
| 额定电压 Rated Voltage | 48VDC | 额定电流 Rated Current | 23 A |
| 额定功率 Rated Power | 0.75KW | 最大负载 Maximum Torque | 4.8 N.m |
| 额定转速 Rated Speed | 3000RPM | 绝缘等级 Insulation Class | F 155℃ |
| 额定负载 Rated Torque | 2.4NM | 防护等级 Safety Class | IP65 |
| 电机型号：90ST-J03330-EX-48V-YTJ |
| 额定电压 Rated Voltage | 48VDC | 额定电流 Rated Current | 31 A |
| 额定功率 Rated Power | 1KW | 最大负载 Maximum Torque | 6.6 N.m |
| 额定转速 Rated Speed | 3000RPM | 绝缘等级 Insulation Class | F 155℃ |
| 额定负载 Rated Torque | 3.3NM | 防护等级 Safety Class | IP65 |
