150EX防爆交流伺服电机

产品类型:防爆伺服电机;
产品型号:150EX;
定制需求:电机接口、电压、转速可按客户要求定制

产品简介 / Introduction

电机型号MOTOR MODEL

电机型号:L(mm)电机型号:L(mm)
150ST-□100XX-EX-XXV249150ST-□100XXB-EX-XXV289
150ST-□120XX-EX-XXV259150ST-□120XXB-EX-XXV299
150ST-□150XX-EX-XXV274150ST-□150XXB-EX-XXV314
150ST-□190XX-EX-XXV299150ST-□190XXB-EX-XXV339
150ST-□240XX-EX-XXV324150ST-□240XXB-EX-XXV364
150ST-□280XX-EX-XXV349150ST-□280XXB-EX-XXV389
150ST-□100XX-EX-XXV224150ST-□100XXB-EX-XXXV259
150ST-□120XX-EX-XXXV234150ST-□120XXB-EX-XXXV269
150ST-□150XX-EX-XXXV249150ST-□150XXB-EX-XXXV284
150ST-□190XX-EX-XXXV274150ST-□190XXB-EX-XXXV309
150ST-□240XX-EX-XXXV299150ST-□240XXB-EX-XXXV334
150ST-□280XX-EX-XXXV324150ST-□280XXB-EX-XXXV359

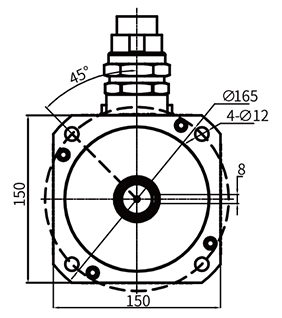

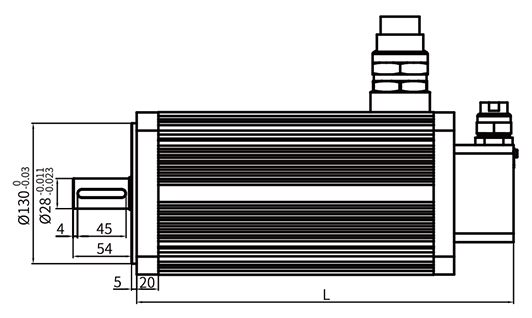

机尺寸表MOTOR DIMENSION TABLE

尺寸表 尺寸表

参数表PARAMETER TABLE

DC24VDC48V
电机型号150ST-10030-EX-24V150ST-12025-EX-24V150ST-15030-EX-24V150ST-10030-EX-48V150ST-12030-EX-48V150ST-15030-EX-48V150ST-19030-EX-48V150ST-24025-EX-48V150ST-28030-EX-48V
额定功率(KW)334.533.74.566.28.5
额定电流(A)147.1147.1220.673.590.7110.3147.1152.0208.3
额定转速(rpm)300025003000250030003000300025003000
最高转速(rpm)360030003600360036003600360030003600
额定扭矩(Nm)101215101215192428
峰值扭矩(Nm)303645303645577284
转子惯量(kg.cm2)24.429.336.624.429.336.648.76173.2
AC220V
电机型号150ST-10030-EX150ST-12030-EX150ST-15030-EX150ST-19030-EX150ST-24030-EX150ST-28030-EX
额定功率(KW)33.74.567.58.5
额定电流(A)12.114.918.124.230.234.3
额定转速(rpm)300030003000300030003000
最高转速(rpm)360036003600360036003600
额定扭矩(Nm)101215192428
峰值扭矩(Nm)303645577284
转子惯量(kg.cm2)24.429.336.648.76173.2
注:电机接口、电压、转速可按客户要求定制
